Panic Button for Driver

Inquire Now

Panic Button for Driver Picture1

Product Features:

  • Metal button

  • Real-time video pop-out and snap-shot by alarm linkage

  • to generate alarm reports for search and download

Wiring Guidance

To connect thetwo wires of the panic button to the two wires (SENSOR IN1 and 12V) from the 24pin I/O cablesof MDVR. Defaulted high voltage trigger is 12V /5V.

Panic Button for Driver Picture2

SENSOR IN1 and 12V-OUT is for panic button alarm input out of the MDVR 24pin I/O cables.

To Configure on the Firmware

Enter the menu → Alarm  → Sensor  → enable the “IO-1” option

It uses the high voltage trigger to linkage the camera channel to enable real-time video pop-out when alarm triggered.

 Panic Button for Driver Picture3

3.to configure on the IVMS Client Software

Login IVMS clientsoftware, click the “Other” →“alarm Config”

 Panic Button for Driver Picture4

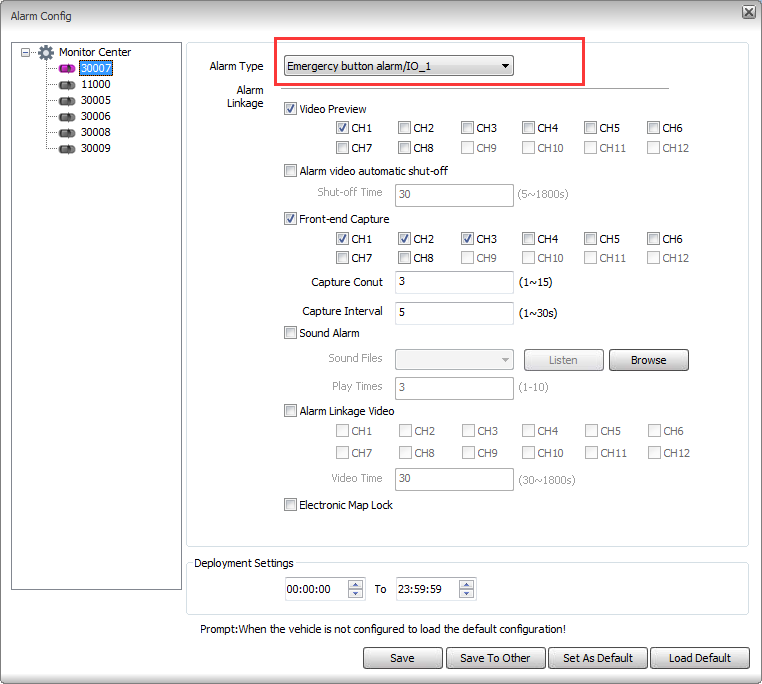

On the “Alarm Config” page, choose the “Alarm Type”as the “emergency button alarm/IO_1”, then save it.

 Panic Button for Driver Picture5

When the driver presses the panic button, the alarm will be triggered, and sent to the server from the MDVR via 3G /4G. It will pop out a real-time video on the IVMS Client software at the same time.

Panic Button for Driver Picture6

 Panic Button for Driver Picture7

There are other alarm type optional according to different type of alarm applications, please consult with our technical team for further information.

Thank you.
