2 channels AI Dash Cam JI7A-E

Model:

JI7A-E（Dash Cam 1080P AHD, with Built-in ADAS Function optional）

JA-MC933（720P AHD, in-cabin camera, with Built-in DSM Function optional）

Order Kits:

Option 1: 2 channels Dash Cam (without ADAS and DSM)

JI7A-E (without ADAS) + JA-M933 (without DSM) + 720P AHD (optional) + 720P AHD (optional)

Option 2: 2 channels Dash Cam(Support ADAS+ DSM)

JI7A-E (with Built-in ADAS) + JA-M933 (with Built-in DSM) + 720P AHD (optional) + 720P AHD (optional)

Product Description

New AI Dash Cam JI7A-E Unboxing

The AI Dash Cam (JI7A-E) is a powerful and easy-installed 1080P AHD recorder for vehicle surveillance with remote monitoring, with ADAS and DSM function optional. This road-facing Dashcam support up to 4 channels of recording, with GPS + 4G + Wi-Fi function, and extended up to 4 channels of 720P AHD in-cabin cameras. It supports H.265 / H.264 compression and decompression with 1 TF card storage (up to 1TB), recording real-time video, GPS, and alarm data.

Suitable for online car-hailing, taxis, minivans, private cars, etc.

Note:

The DSM (Driver Status Monitoring) system captures an image of the driver’s face to detect behaviors such as yawning, eyes closing, smoking, using a phone, and distraction. It provides real-time sound warnings to alert the driver of potential dangers when abnormal behaviors are detected, thereby helping to reduce accidents.

Click here learn more:

Why is Driver Status Monitoring(DSM) System helpful to prevent fatigued driving?

How to Effectively Manage The Taxi Fleet?

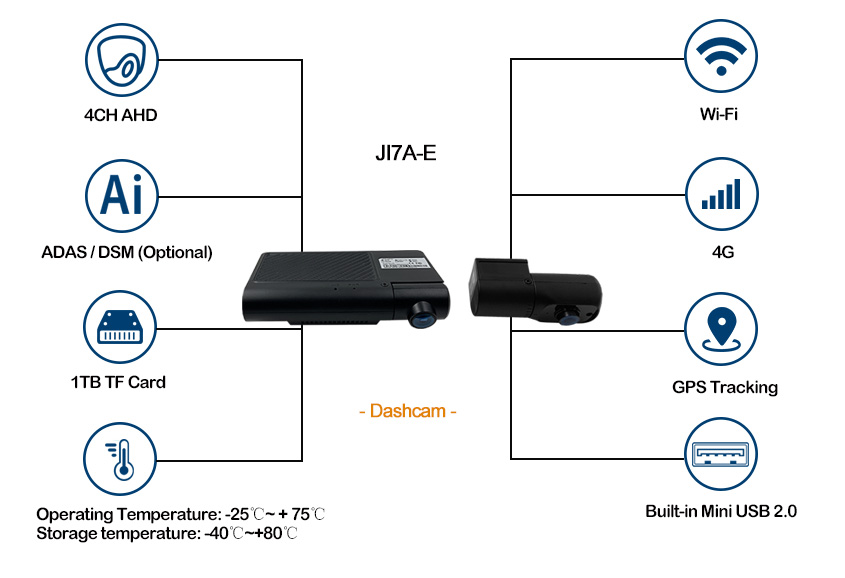

Product Features

• Hidden antenna design, without external antenna installation.

• Special integrated design to the external GPS module/antenna or in-cabin camera (JA-MC933) with built-in antenna and provides better GPS signal and performance than other regular dashcam designs, help the interference to the GPS signal from the recorder circuit.

• Support up to 4 channels AHD camera inputs, with 1 channel 1080P AHD(The 1080P AHD is fixed on the JI7A-E host) +3 channels 720P AHD full-frame recording.

• Optional with ADAS, DSM function.

• 1 TF card video storage, up to 1TB.

• Compatible with H.265 / H.264 video encoding.

• Built-in Wi-Fi as a hotspot, used for wireless connection between mobile phones and devices, using mobile APP settings to view device parameters, status, playback video, and other functions.

• Support MIC & speaker

• Built-in 1-way yellow and blue bi-color indicator light to indicate the device’s working status, hidden design avoids interfering with the driver’s sight.

• Support an emergency alarm button.

• Support an integrated 3-axis accelerometer (G-Sensor) and 3-axis gyroscopes (total 6 axis), to detect a crash, harsh braking, acceleration, and cornering.

• With a built-in Mini USB 2.0 for equipment maintenance.

• Support low voltage protection, when the voltage is lower than 8.5V, the device will automatically shut down (shutdown voltage value can be set, the default value is 8.5V).

• 9V-36V DC power supply.

• Operating Temperature -25℃~ + 75℃, Storage temperature -40℃~+80℃.

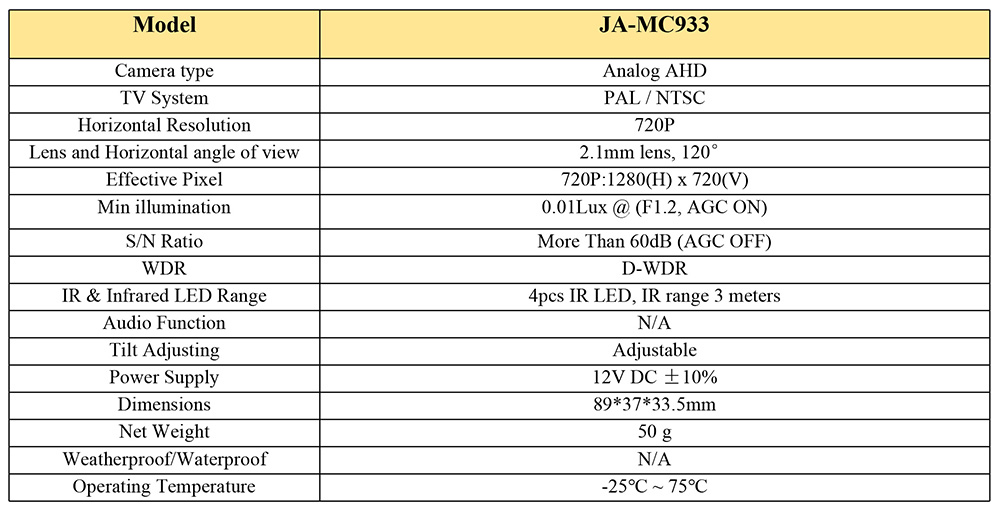

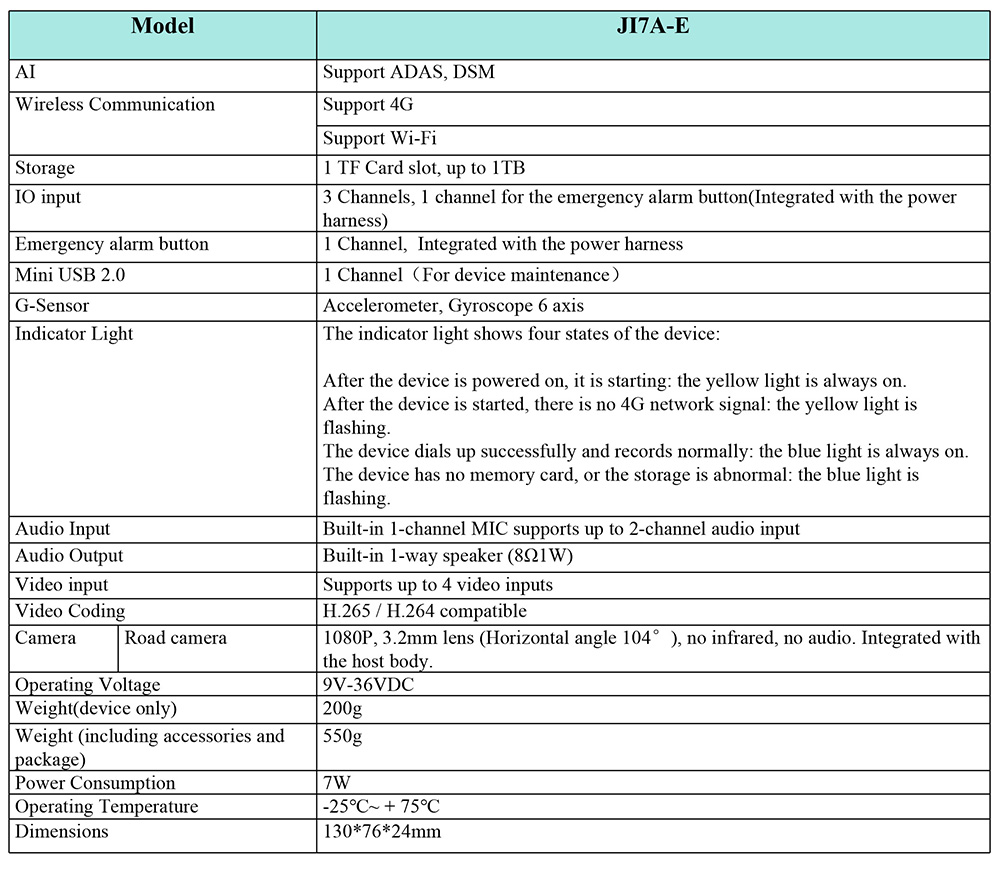

Product Specification

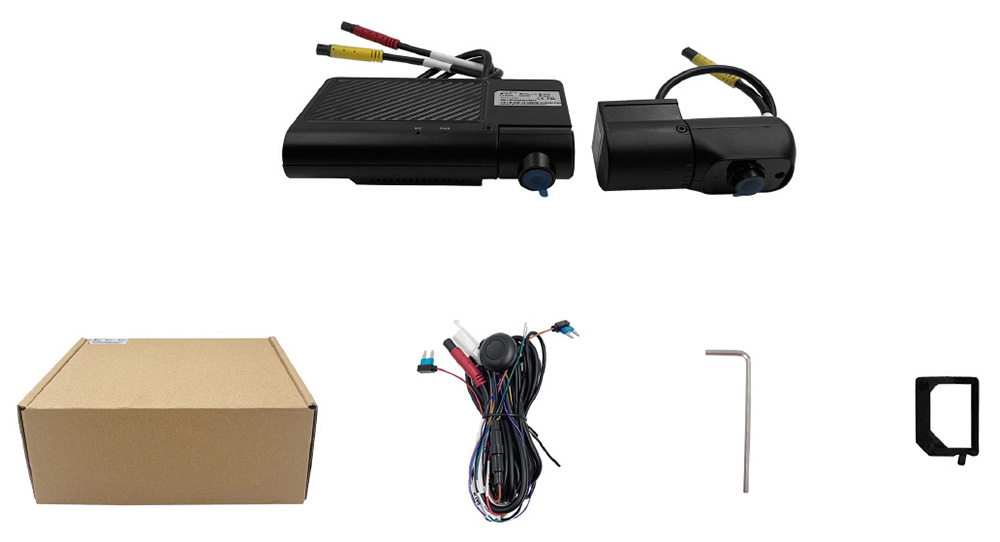

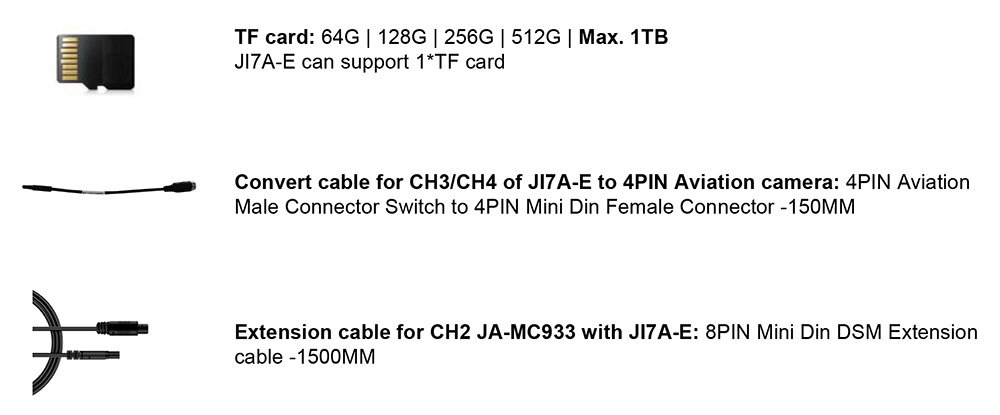

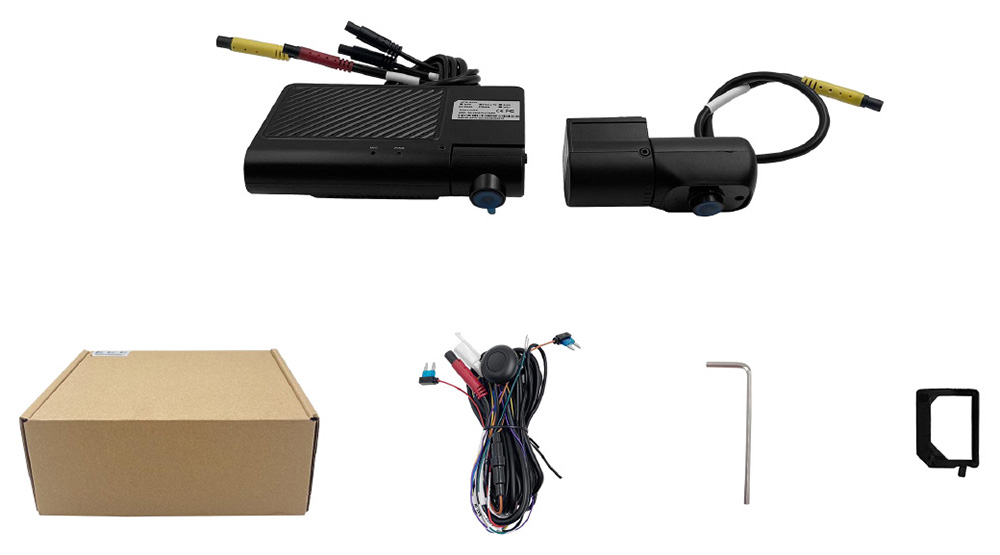

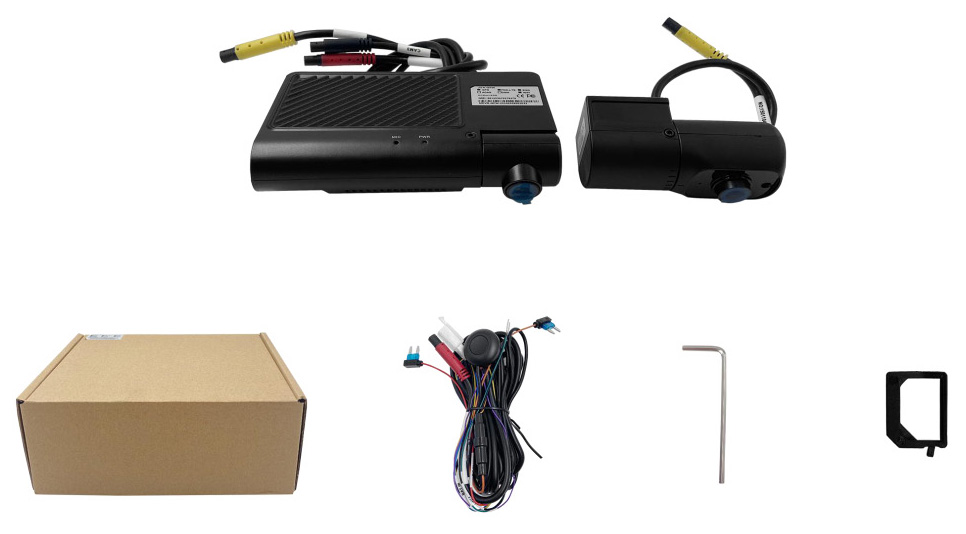

Accessories

Download
